Game Boy Color IPS LCD V3 Backlight Kit - Hispeedido
Game Boy Color IPS LCD V3 Backlight Kit - Hispeedido
SKU : GBC4102

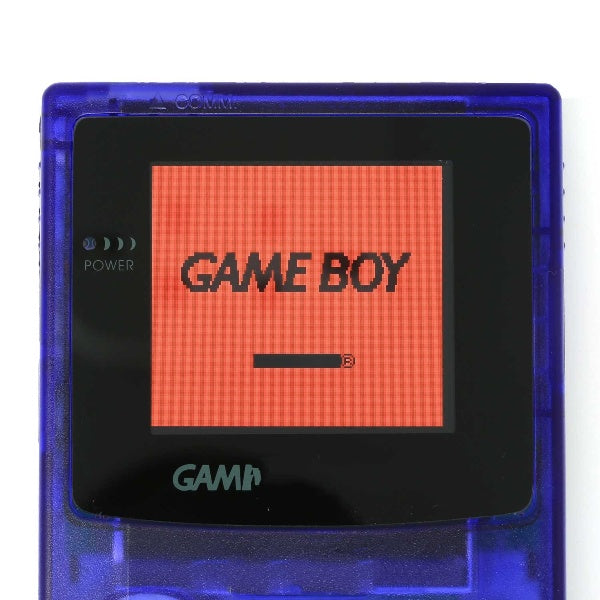

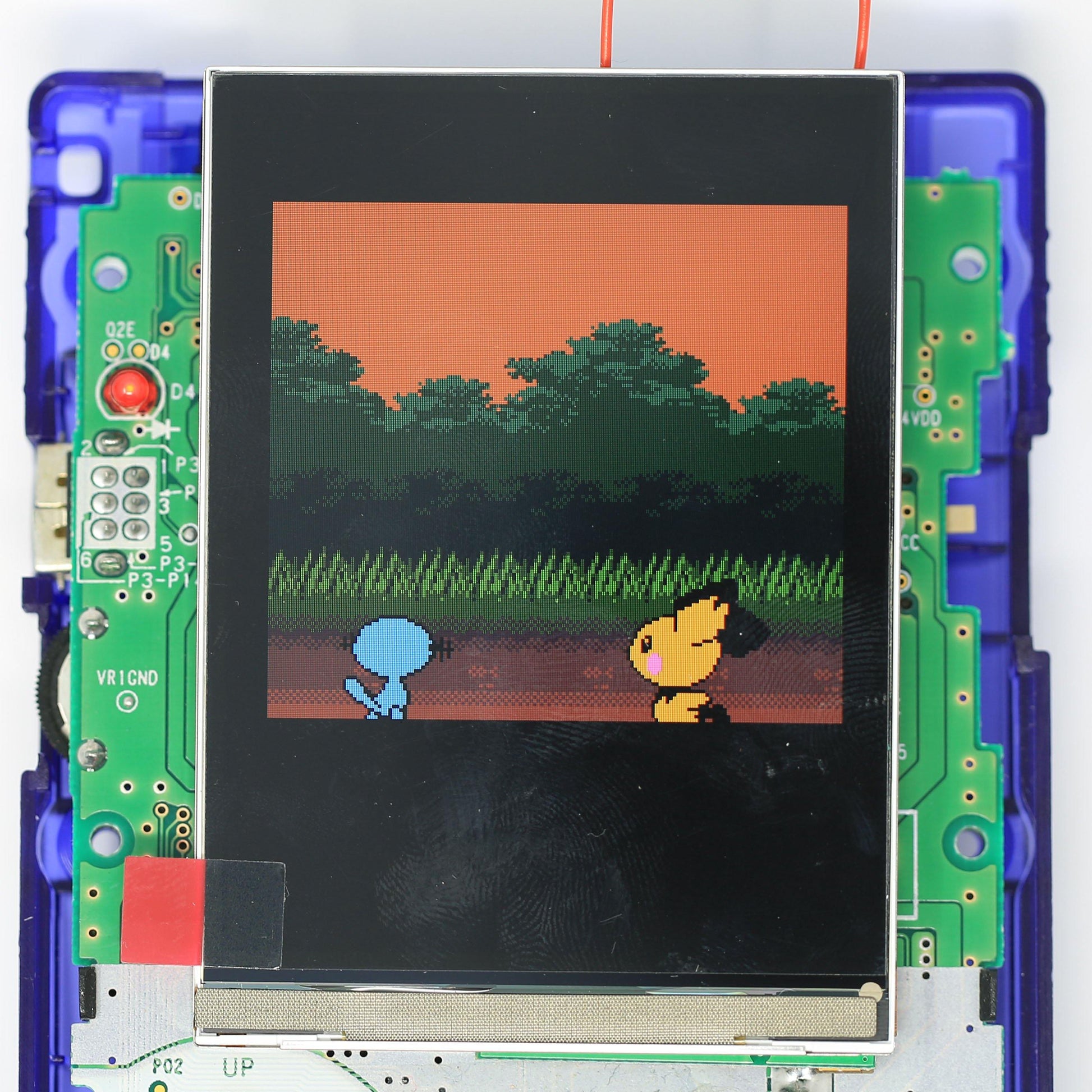

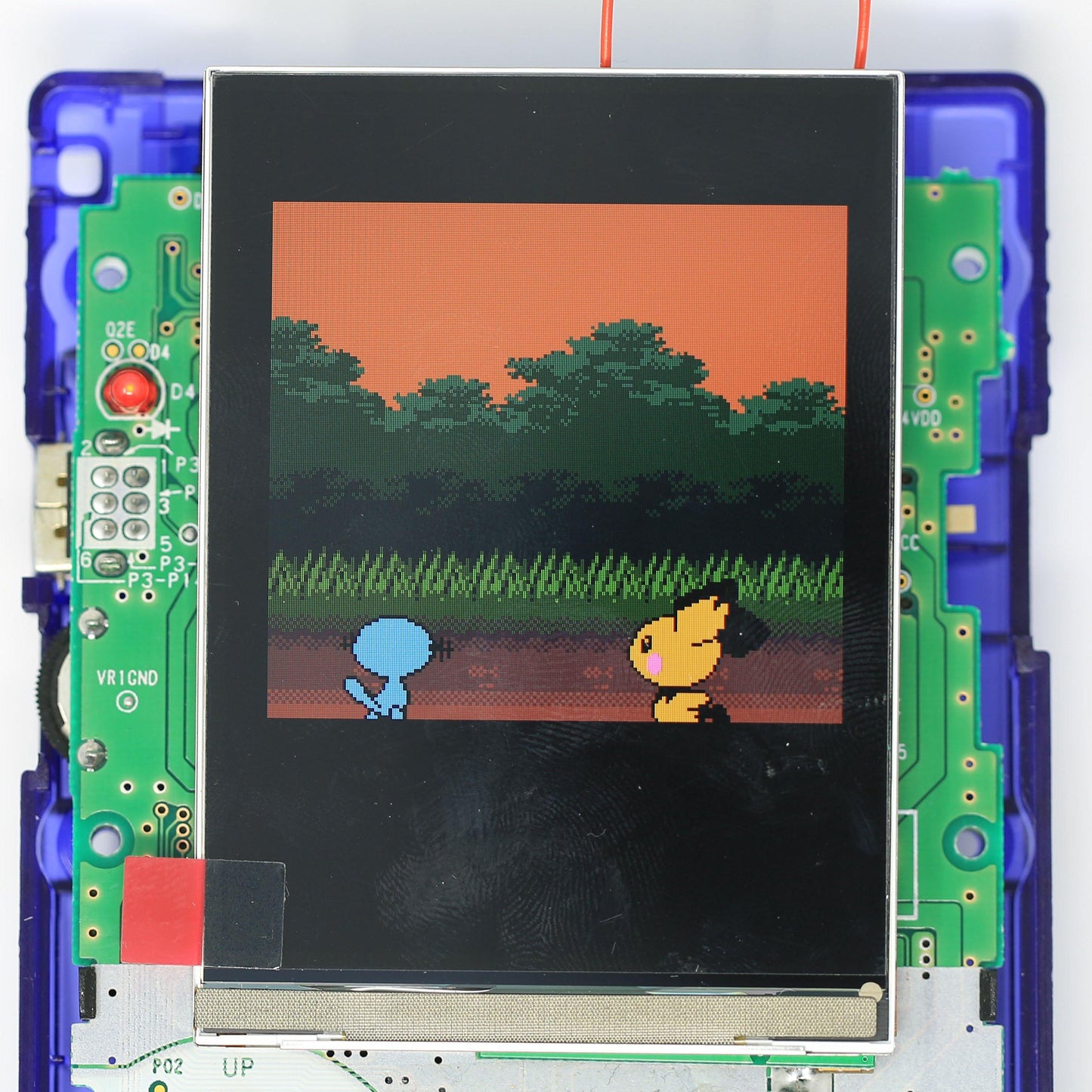

Yet another IPS LCD for the Game Boy Color with improved function. Backlight and illuminate your beloved childhood GBC with a modern IPS LCD with improved color, contrast and viewing angle.
There is no soldering required to install this LCD kit. You can adjust the brightness and color pallets via the pre-soldered touch pads. The only soldering that is required is if you'd like to use buttons to change the brightness or color pallets. See button functionality instructions below.
FEATURES:
- Same display area as the original.

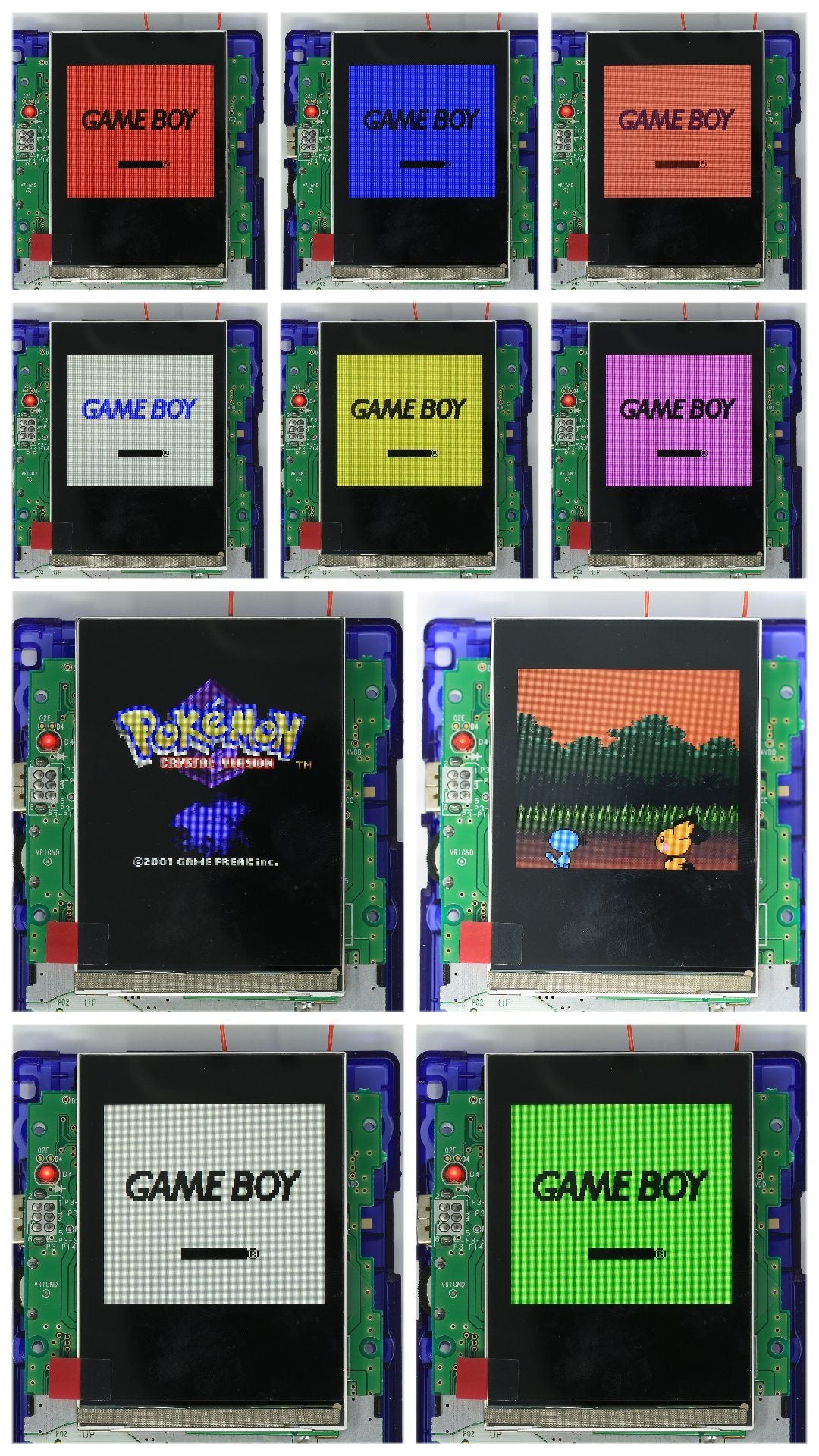

- 8 "color palette" options VIA touch sensor already soldered to PCB.
- 10 brightness levels VIA touch sensor already soldered to PCB.

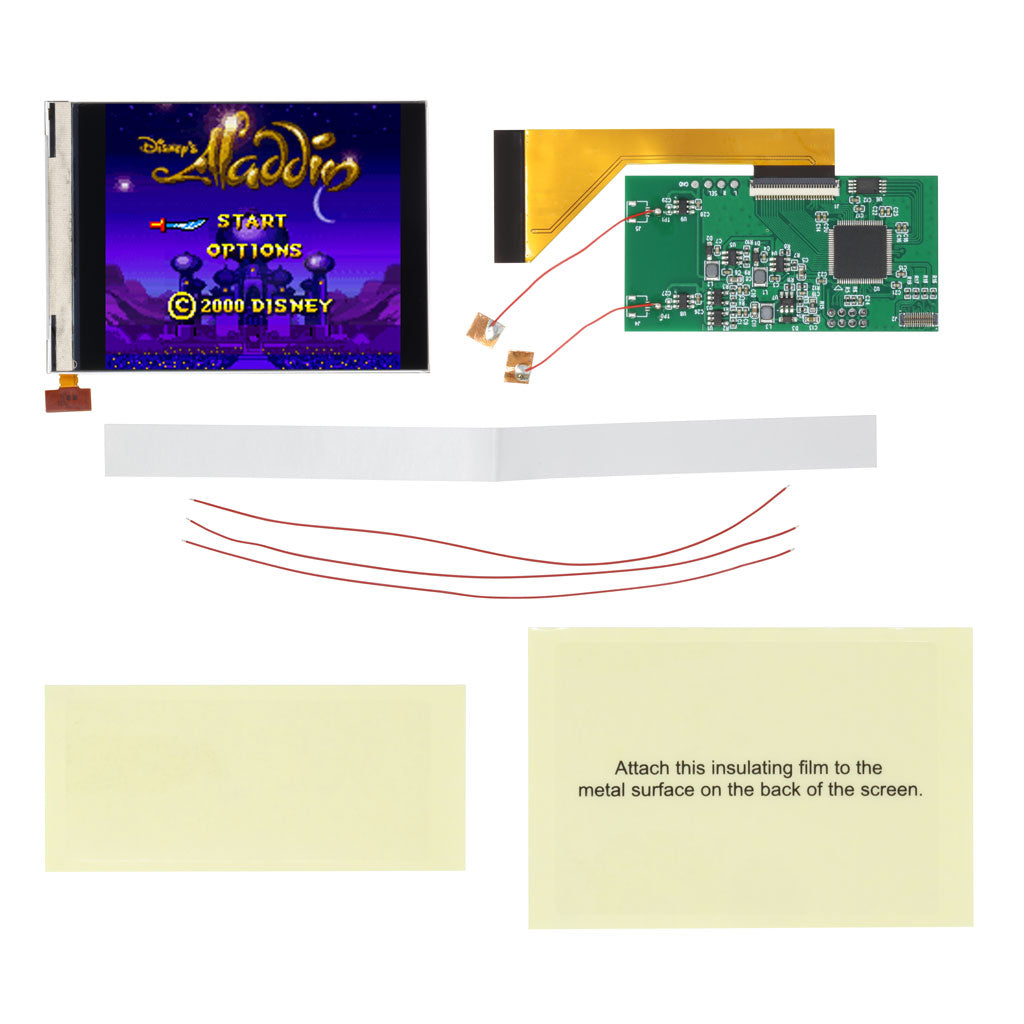

INCLUDED:
- 1x IPS LCD

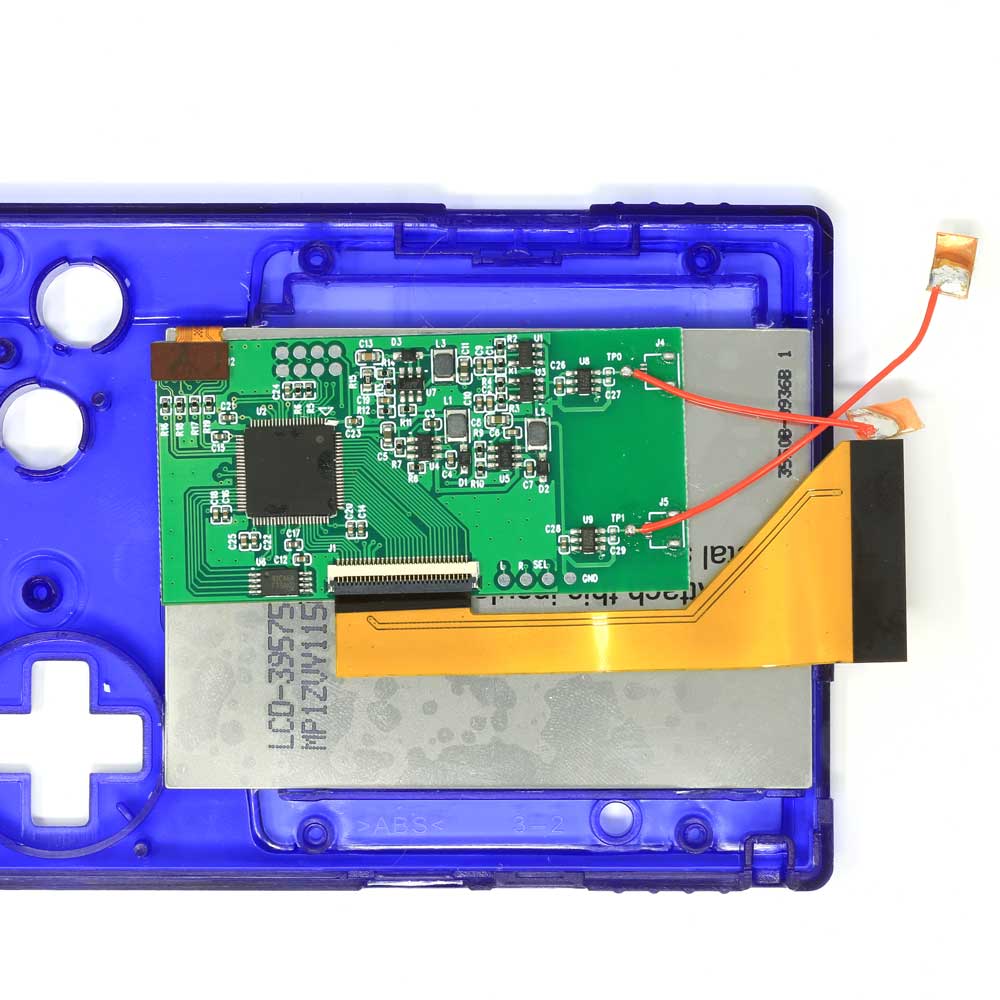

- 1x PCB with two pre-soldered touch sensor wires
- 1x Ribbon
- 2x Insulation films
- 3x Wires
- 1x Adhesive mounting strip
PAIRS WELL WITH:
- Game Boy Color Glass Tempered Lens
- Game Boy Color IPS LCD Bracket
- Game Boy CleanAmp v1.1 Audio Amplifier
DOCUMENTATION:
- Install Guide
- Install Video
- How to test your LCD kit
- Button Functionality Instructions:
- Connect "SEL" to Select button
- Connect "L" to A button
- Connect "R" to B button
- Press Select + A and he brightness will decrease
- Press Select + B and the brightness will increase
- Press Select + A + B at the same time and the color will change every 1 second
NOTES:
- Shell modification required
- Prestige shells will need some trimming near the D-Pad area inside shell, and the alignment posts/pins.
- After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please see this article for assistance.
WARNINGS:
-
Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
- LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
Friendly Returns
Secure Checkout
1-2 Days Shipping
Prompt Customer Support
Great service and support. Product is fantastic.
Easy install, looks good.
This was my first time ever modding a console. Overall, the screen works great! It leans slightly to the left in the shell I have (SKU GBC1155), but I'm still able to see the whole screen. There was a bit of confusion with the instructions provided on the site, as there is a bit of adhesive provided with the screen, but the instructions only mention 1/3 of them.
Other than that, the screen has 8 different color pallets to select from, and 9 (not 10 as stated on the items page) brightness's to select from. Games look amazing on it! So bright and colorful, it's like a whole new experience.
The instructions on site could be updated, but overall, great screen for first timers!
Amazing screen
Huge upgrade to my old Gameboy color
So far so good, the screen looks marvelous and it was easy to install, I'm having a good time with my GBC.
