SKU : GBA6003
Charge and Play:
The robot_retro GBA battery has charge and play functionality. Please note, if the USBC cable is remove from the GBA before the battery is sufficiently charged, the console will power cycle. Therefore, please either ensure the battery is fully charged or save your game before unplugging.
FEATURES:
- Adds USB-C charging feature to GBA.
- No soldering required.
- Charge and play functionality.
- Low power indicator. The GBA light will turn red when there is 10-15min of play time remaining.
- Battery protection to prevent voltage dropping below 3.3v.
- Supports USB C to C , and USB C to A.
- Low heat generation.
- Compatible with all common IPS shells on the market. OEM shells will need to be trimmed to accommodate the battery.
- A fully modded console with an IPS screen, amplifier, and flash cart will yield around 9.5-10 hours battery life.
- Comes with a 1500mAh battery.
- Uses a negative polarity 10x30x48mm battery with a JST-ZH connector.
- USB-C battery covers and charging cables sold separately.
- For non-IPS and original shells battery housing modification is required. USB-C battery cover hole will need to be cut out.
- For IPS ready shells, battery housing modification is not required. USB-C Battery cover hole will need to be cut.
- V2 boards are now compatible with all USB-C battery covers.
- If you have a V1 board, RetroSix shells and USB-C battery covers are a perfect match for this module. If you are planning to use either a FunnyPlaying or Hispeedido shell/ USB-C battery cover you will need to trim a tab on the upper left side of the USB-C battery over.
INCLUDED:

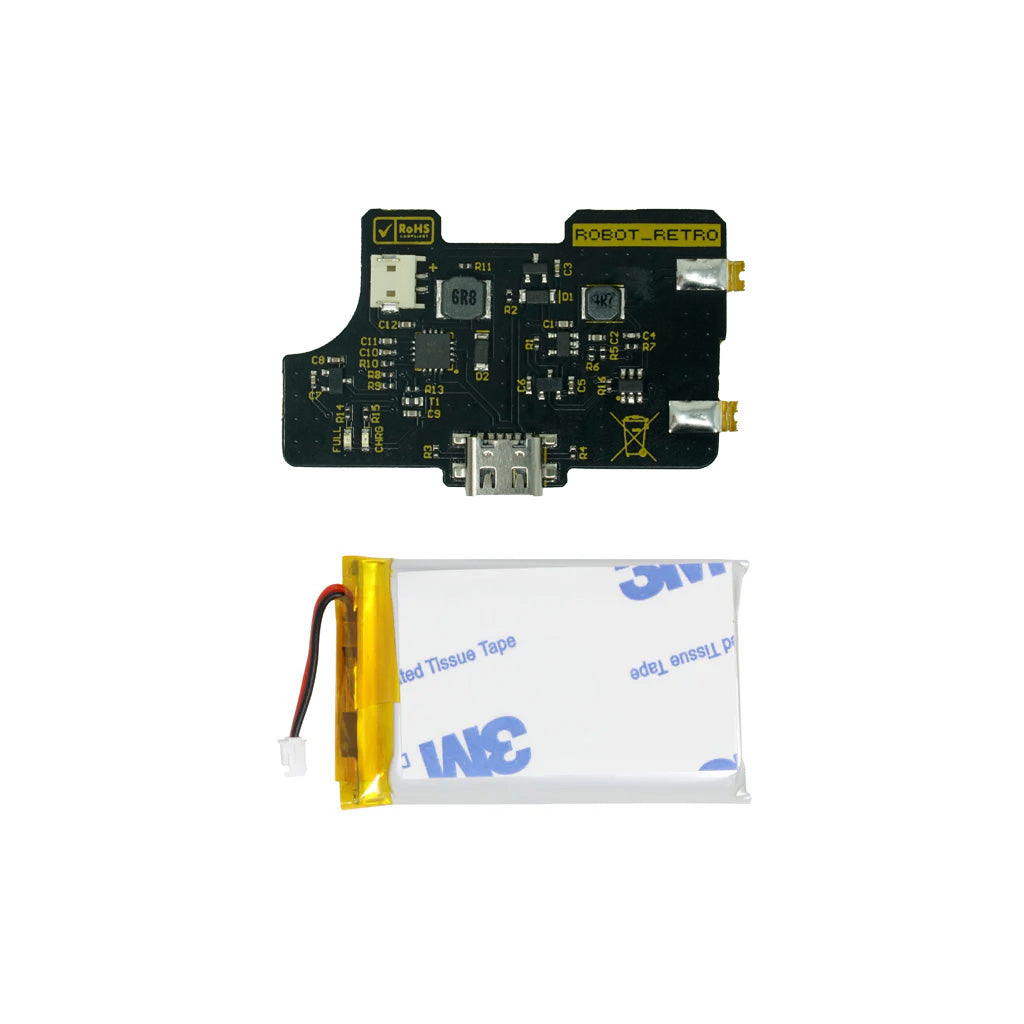

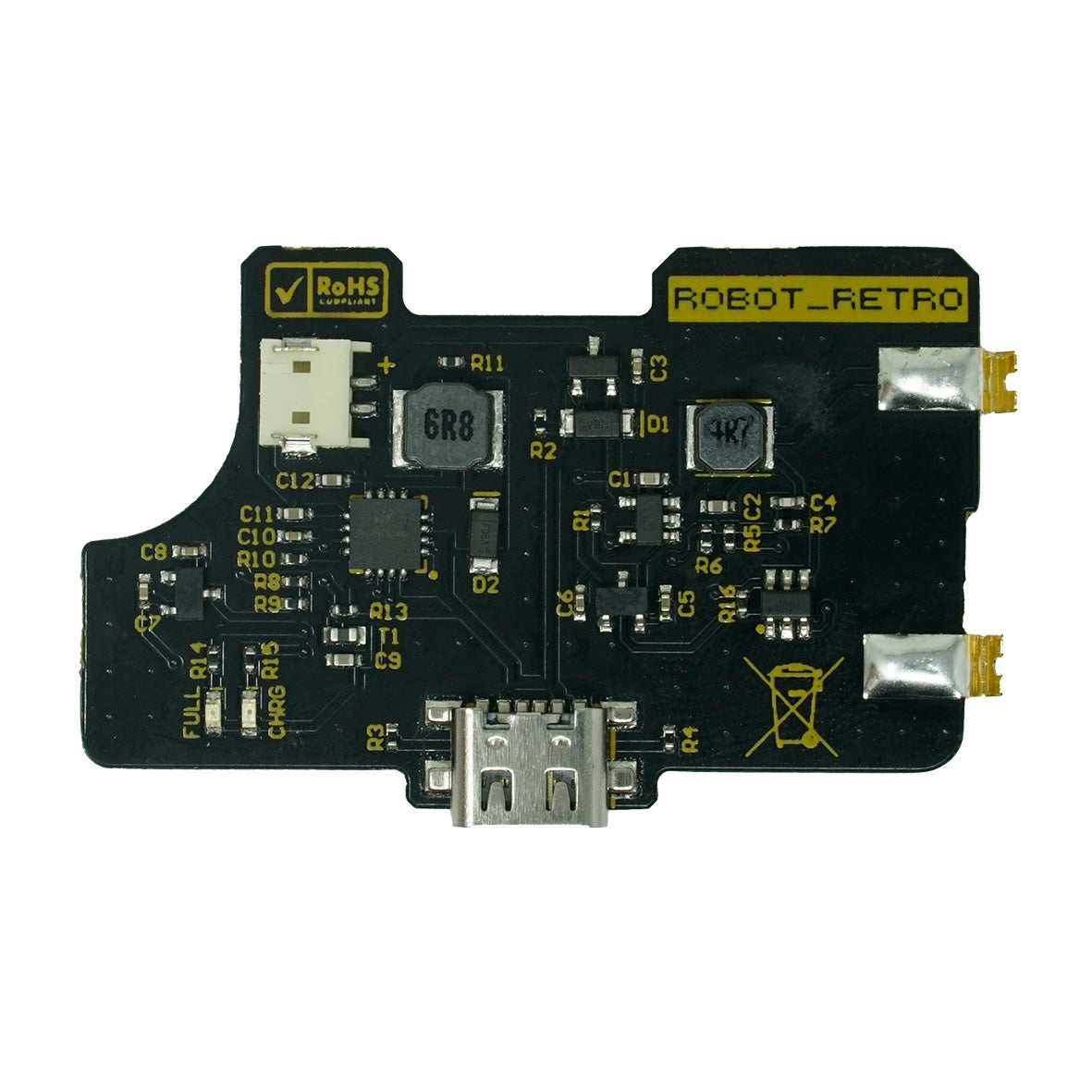

- 1x USB-C Module PCB
- 1x Battery
PAIRS WELL WITH:
-
Game Boy Advance Prestige Shell
-
Game Boy Advance USB-C Battery Cover for CleanJuice GBA
-
IPS LCD V2 for Game Boy Advance - Hispeedido
- USB-C Charging USB Cable
DOCUMENTATION:
- Drill guide for regular battery covers: Clean_Juice_USB_C_Guide_1.stl

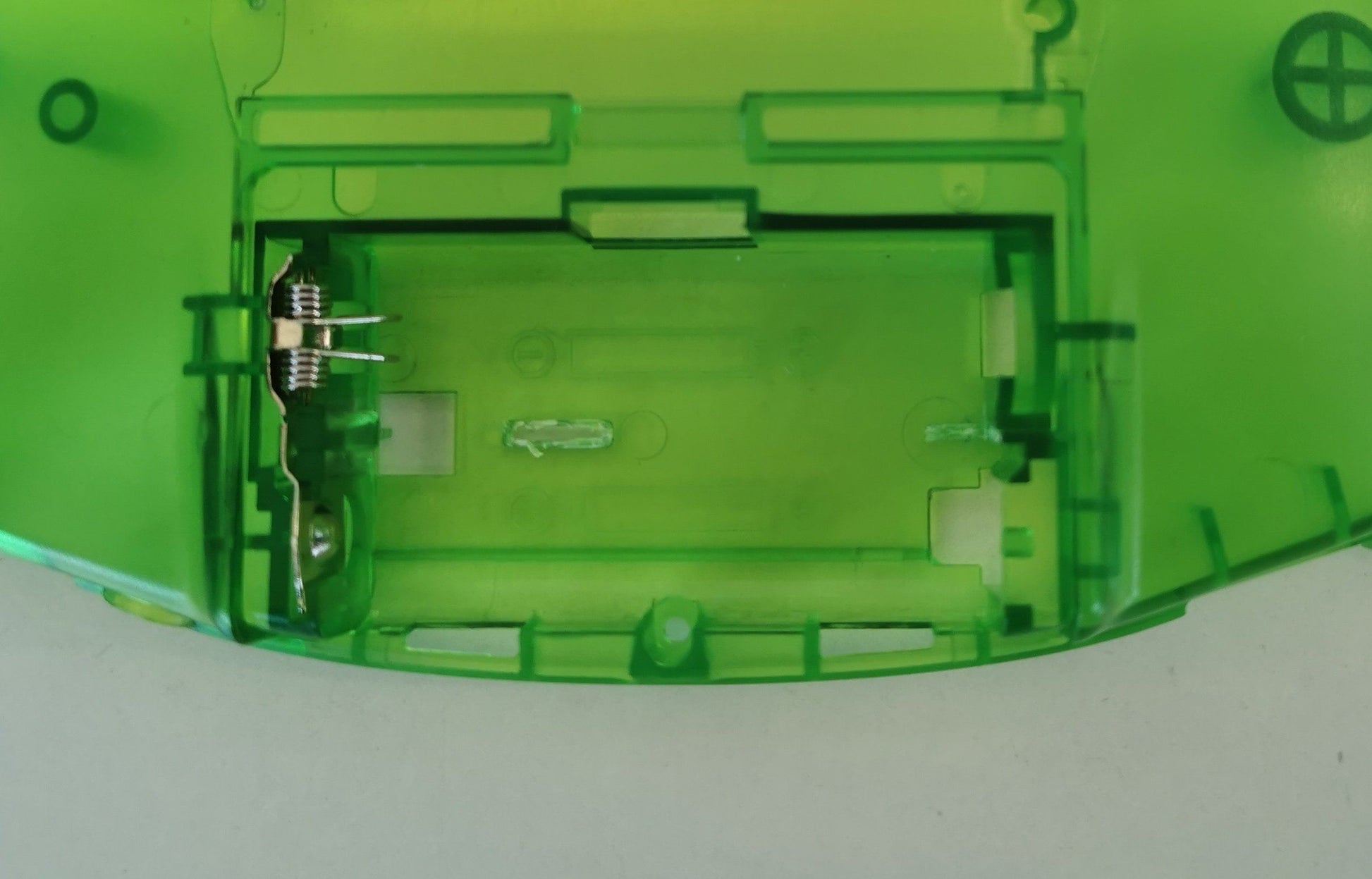

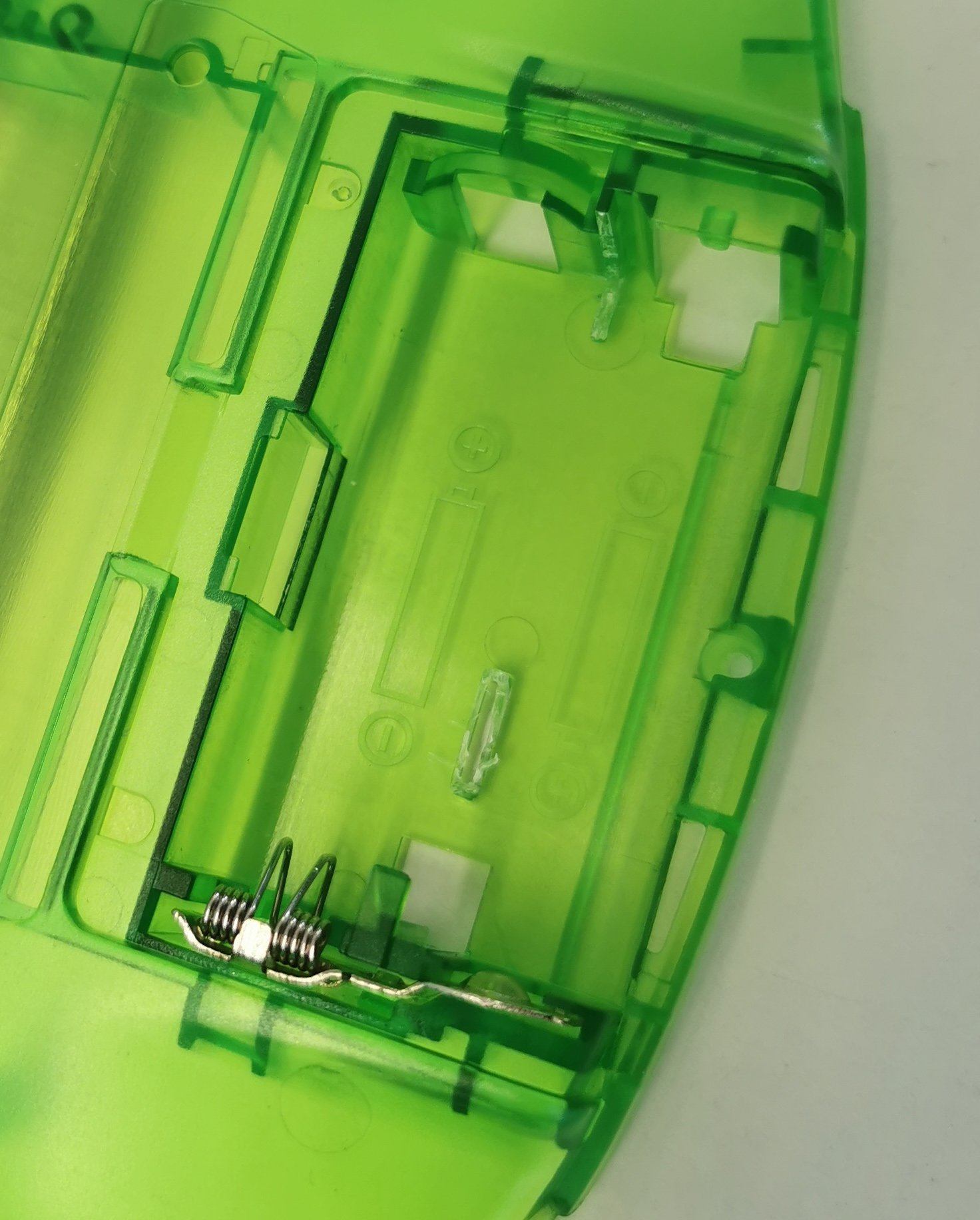

- Install: Remove the GBA left hand side battery spring (optional) and place the battery in the battery housing. Place the battery in left side first then push down the right side so the springs are in contact with the GBA battery springs.
NOTES:
- Created by Robot_Retro
WARNINGS:
Risk of fire if improperly charged or if battery is punctured. Only use protected power sources along with power delivery (PD) compliant cables and chargers. Using uncertified hardware may result in more than 5v being delivered to your product. Damage caused by unsupported hardware voids our return/exchange policy. Examples of supported chargers:
- Nintendo Switch charger
- MacBook Pro type C charger
- Samsung type C charger
- Google Pixel charger
- USB A to USB C cable (certified only!)
